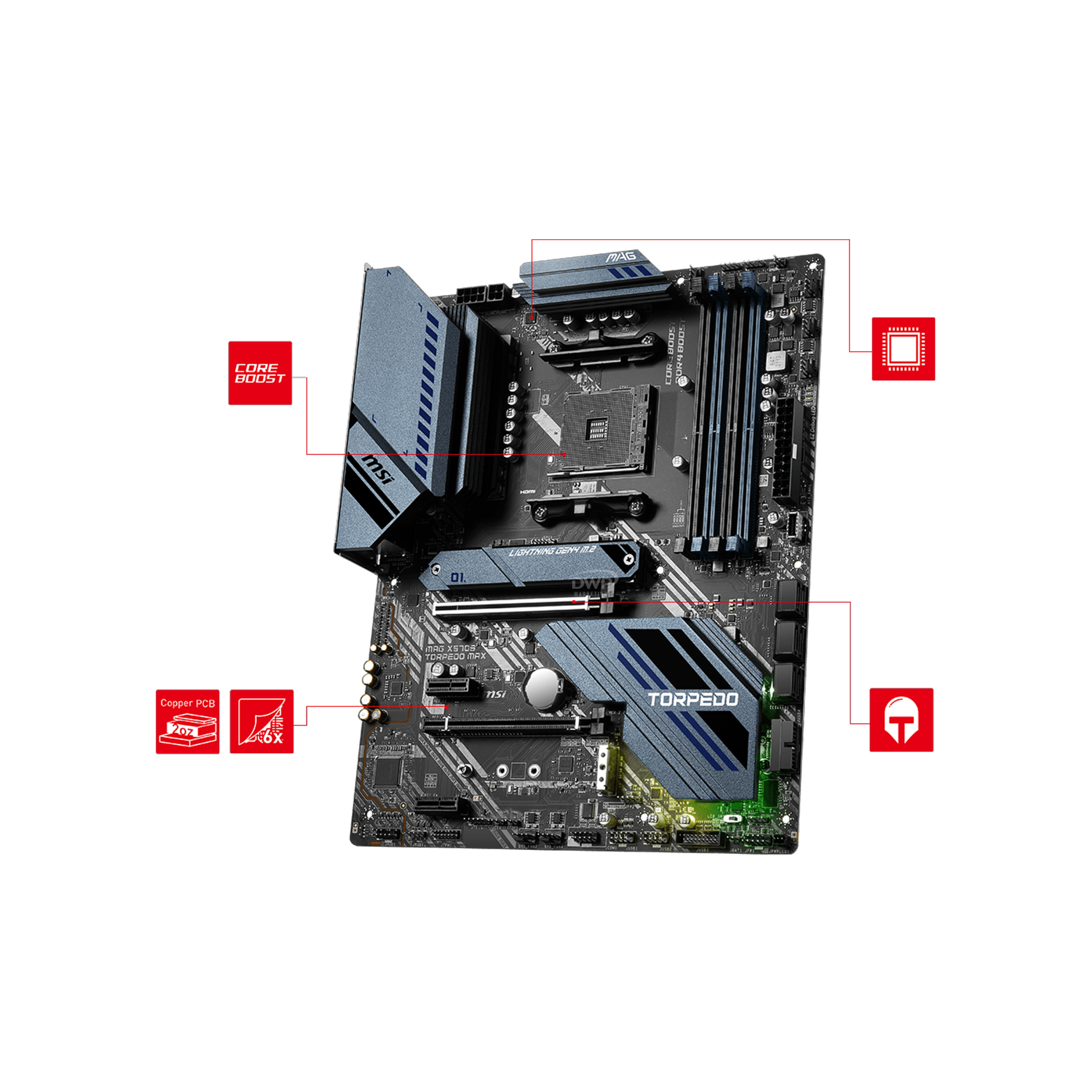

MSI MAG X570S Torpedo MAX

PROCESSOR

CHIPSET

AMD X570 Chipset

MEMORY

• 4x DDR4 memory slots, support up to 128GB

• Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC1

• Max overclocking frequency by A-XMP OC mode:

  • For Ryzen™ 5000 G-Series & 4000 G-Series processors

    • 1DPC 1R Max speed up to 5100 MHz

    • 1DPC 2R Max speed up to 4000 MHz

    • 2DPC 1R Max speed up to 4266 MHz

    • 2DPC 2R Max speed up to 3600 MHz

  • For Ryzen™ 5000 Series & 3000 Series processors

    • 1DPC 1R Max speed up to 5100 MHz

    • 1DPC 2R Max speed up to 3866 MHz

    • 2DPC 1R Max speed up to 4000 MHz

    • 2DPC 2R Max speed up to 3600 MHz

• Supports Dual-Channel mode

• Supports non-ECC, un-buffered memory

1. Please refer to www.msi.com for more information on compatible memory.

EXPANSION SLOT

• Supports PCIe 4.0 / PCIe 3.0 specification

  • PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors

• 1x PCIe x16 slot (From processor)

  • PCI_E1 supports PCIe 4.0/ 3.0 x16

• 1x PCIe x16 slot (From X570 chipset)

  • PCI_E3 supports PCIe 4.0/ 3.0 x4

• 2x PCIe 3.0 x1 slots (From X570 chipset)

MULTI-GPU

• Supports AMD CrossFire™ Technology

ONBOARD GRAPHICS

• 1x HDMI 2.1 port, supports a maximum resolution of 4K 60Hz 1 2

1. Available only on processors featuring integrated graphics.

2. Graphics specifications may vary depending on the CPU installed.

STORAGE

• 6x SATA 6Gb/s ports (from AMD X570 Chipset)

• 2x M.2 slots (Key M)

  • Support up to PCIe 4.0 for AMD Ryzen™ 5000 Series and 3000 Series desktop processors

  • Support up to PCIe 3.0 for AMD Ryzen™ 5000 G-Series, 4000 G-Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processor

  • Supports up to SATA 6Gb/s

  • M2_1 slot (from Processor)

    • Support 2280/22110 storage devices

  • M2_2 slot (from AMD X570 Chipset)

    • Supports 2242/ 2260/ 2280 storage devices

RAID

• Supports RAID 0, RAID 1 and RAID 10

USB

AMD X570 Chipset

• 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector)

• 4x USB 3.2 Gen 1 5Gbps ports available through the internal USB 3.2 Gen 1 5Gbps connectors

• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)

AMD Processor

• 2x USB 3.2 Gen 2 10Gbps ports on the back panel (Type-A &Type-C)

• 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

AUDIO

Realtek® ALC4080 Codec

• 7.1-Channel High Definition Audio

• Supports S/PDIF output

LAN

• 1x Realtek® 8125B 2.5Gbps LAN Controller

• 1x Realtek® RTL8111H 1Gbps LAN Controller

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector

• 1x 8-pin ATX 12V power connector

• 1x 4-pin ATX 12V power connector

• 6x SATA 6Gb/s connectors

• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

• 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)

• 1x USB 3.2 Gen 2 10Gbps Type-C port

• 1x 4-pin CPU fan connector

• 1x 4-pin water-pump connector

• 4x 4-pin system fan connectors

• 1x Front panel audio connector

• 2x System panel connectors

• 1x Chassis Intrusion connector

• 1x TPM module connector

• 1x Serial port connector

• 1x Chassis Intrusion connector

LED FEATURE

• 2x 4-pin RGB LED connectors

• 2x 3-pin RAINBOW LED connectors

• 4x EZ Debug LED

• 1X EZ LED Control switch

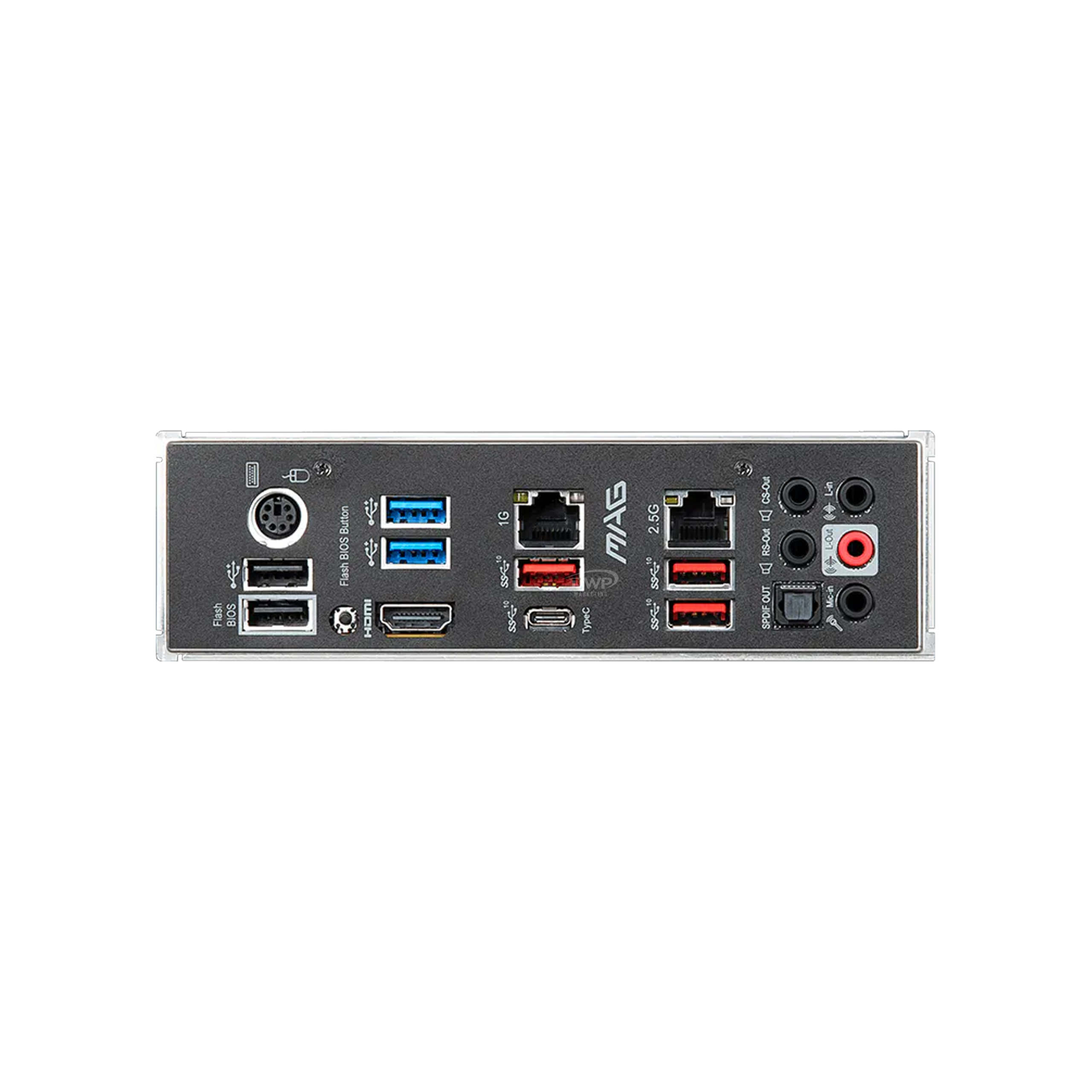

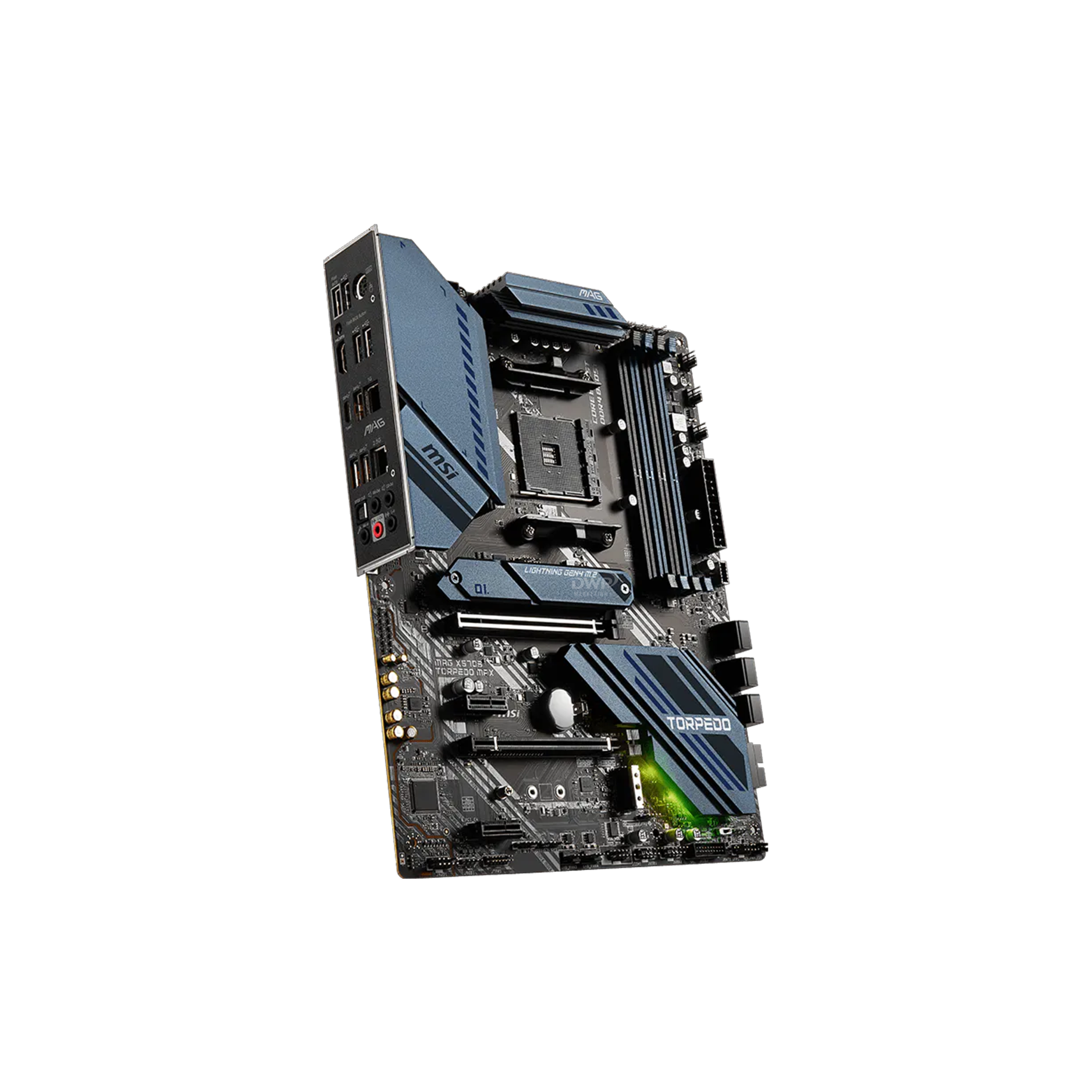

BACK PANEL PORTS

1. PS/2 Mouse / Keyboard

2. USB 3.2 Gen 1 5Gbps (Type-A)

3. Gigabit LAN Port

4. 2.5G LAN Port

5. HD Audio Connectors

6. USB 2.0 Port

7. Flash BIOS Button

8. HDMI 2.1 Port

9. USB 3.2 Gen 2 10Gbps (Type-C)

10. USB 3.2 Gen 2 10Gbps (Type-A)

11. Optical S/PDIF OUT

DIMENSIONS

• ATX Form Factor

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

OPERATING SYSTEM

Support for Windows® 10 64-bit
