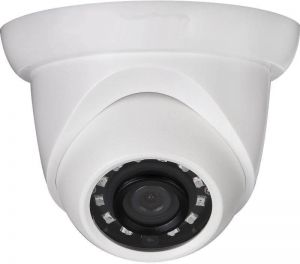

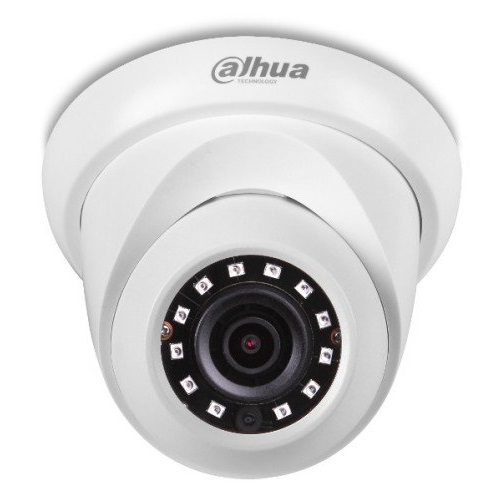

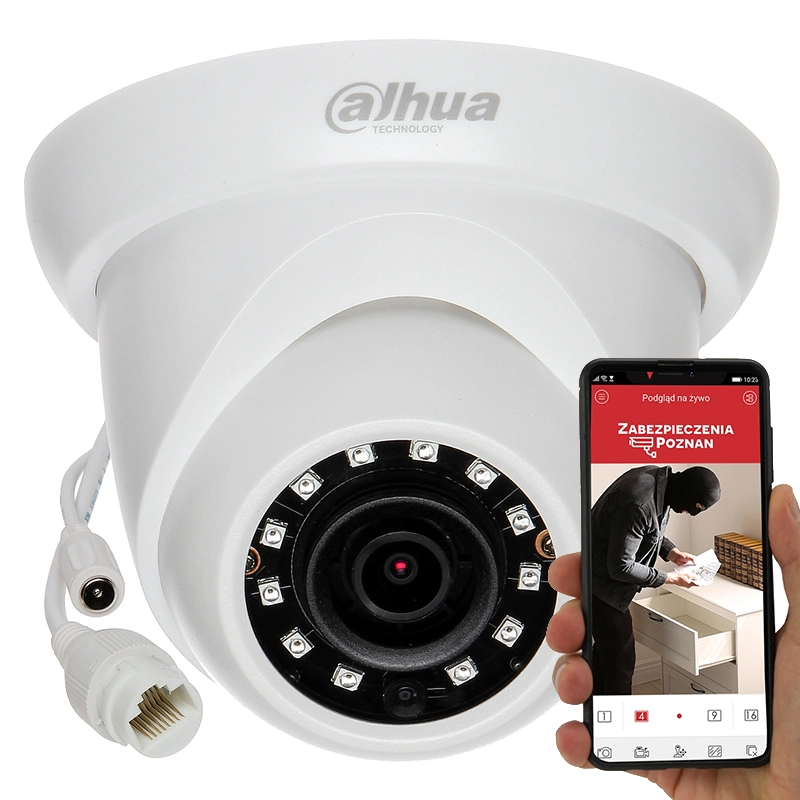

DAHUA DH-IPC-HDW1230SN EYEBALL CAMERA

Core Features:

• Image Sensor: 1/2.7″ or 1/2.8″ progressive CMOS at 2 MP (1920 × 1080) resolution Dahua Technology+1.

• Encoding: Supports H.265, H.264, with Smart H.265+ / H.264+ for enhanced compression and reduced storage costs Dahua TechnologyDahua Security.

• Frame Rate: up to 25/30 fps at full HD resolution Dahua TechnologySource Security.

• Low-Light & IR: Built-in IR LEDs offering up to 30 m of illumination, with Smart IR to avoid overexposure in close-ups Dahua Technology+1.

• Lens Options: Fixed focal lens, typically 2.8 mm with optional 3.6 mm Dahua TechnologyInfoBahn Ecommerce Store.

Image Enhancements & Intelligence:

• Image Quality Features: Includes DWDR (digital wide dynamic range), 3D DNR (noise reduction), HLC/BLC (highlight/backlight compensation), AGC, and more Source SecurityInfoBahn Ecommerce Store.

• Intelligent Video Analysis: Offers features like tripwire, intrusion detection, tamper alert, motion detection, and abnormality detection such as network disconnection and IP conflict Dahua Technology+1.

Build & Environmental Specs:

• Weatherproof: Rated IP67 for dust and water protection, making it suitable for outdoor use Dahua TechnologyDahua Security.

• Operating Conditions: Designed to function in extreme temperatures, approximately –30°C to +60°C Dahua TechnologySource Security.

• Power Options: Can be powered via 12 V DC or PoE (Power over Ethernet) Dahua TechnologySource Security.

Physical & Mounting Details:

• Mounting Flexibility: Pan, tilt, and rotation adjustments—Pan up to 355°, Tilt ~78°, with full 360° rotation possible Dahua Technology.

• Dimensions & Build: Compact dome form; commonly around 108 mm diameter, weight ~260 g (varies by variant) Source Security.
