General Specifications:

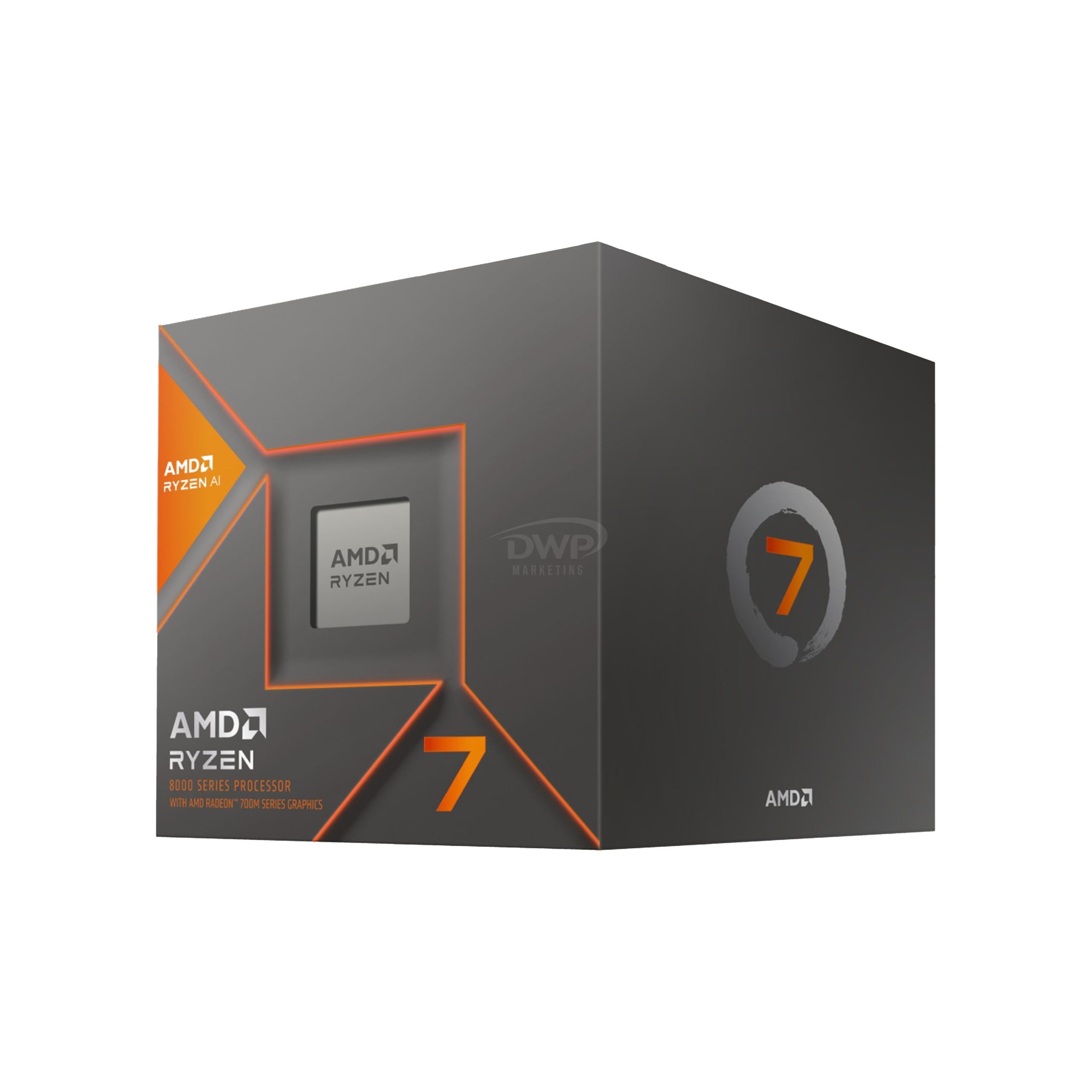

Name: AMD Ryzen™ 7 8700G
Family: Ryzen
Series: Ryzen 8000 Series
Form Factor: Desktops
Regional Availability: Global
Former Codename: Phoenix
Processor Architecture: Zen 4
# of CPU Cores: 8
Multithreading (SMT): Yes
# of Threads: 16
Max. Boost Clock: Up to 5.1 GHz
Base Clock: 4.2 GHz
L2 Cache: 8 MB
L3 Cache: 16 MB
Default TDP: 65W
AMD Configurable TDP (cTDP): 45-65W
Processor Technology for CPU Cores: TSMC 4nm FinFET
CPU Compute Die (CCD) Size: 178mm²
Package Die Count: 1
Unlocked for Overclocking: Yes
AMD EXPO™ Memory Overclocking Technology: Yes
Precision Boost Overdrive: Yes
Curve Optimizer Voltage Offsets: Yes
AMD Ryzen™ Master Support: Yes
CPU Socket: AM5
Supporting Chipsets: A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology: Precision Boost 2
Instruction Set: x86-64
Supported Extensions: AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Max. Operating Temperature (Tjmax): 95°C
Launch Date: Q1 2024
*OS Support: Windows 11 – 64-Bit Edition , Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Graphics Capabilities
Graphics Model: AMD Radeon™ 780M
Graphics Core Count: 12
Graphics Frequency: 2900 MHz
DirectX® Version: 12
DisplayPort™ Version: 2.1
DisplayPort Extensions: Adaptive-Sync , HDR Metadata , UHBR10
DisplayPort Max Refresh Rates (SDR): 7680×4320 @ 60Hz , 3840×2160 @ 240Hz , 3440×1440 @ 360Hz , 2560×1440 @ 480Hz , 1920×1080 @ 600Hz
DisplayPort Max Refresh Rates (HDR): 7680×4320 @ 60Hz , 3840×2160 @ 240Hz , 3440×1440 @ 360Hz , 2560×1440 @ 480Hz , 1920×1080 @ 600Hz
HDMI® Version: 2.1
HDCP Version Supported: 2.3
USB Type-C® DisplayPort™ Alternate Mode: Yes
Multi-Monitor Support: Yes
Max Displays: 4
AMD FreeSync™: Yes
Wireless Display: Miracast
Max Video Encode Bandwidth (SDR):1080p630 8bpc H.264, 1440p373 8bpc H.264, 2160p175 8bpc H.264, 1080p630 8bpc H.265, 1440p373 8bpc H.265, 2160p175 8bpc H.265, 4320p43 8bpc H.265, 1080p864 8/10bpc AV1, 1440p513 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1
Max Video Decode Bandwidth:1080p60 8bpc MPEG2, 1080p60 8bpc VC1, 1080p786 8/10bpc VP9, 2160p196 8/10bpc VP9, 4320p49 8/10bpc VP9, 1080p1200 8bpc H.264, 2160p300 8bpc H.264, 4320p75 8bpc H.264, 1080p786 8/10bpc H.265, 2160p196 8/10bpc H.265, 4320p49 8/10bpc H.265, 1080p960 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1
AMD SmartAccess Memory: Available
