Description
SPECIFICATION
GPU

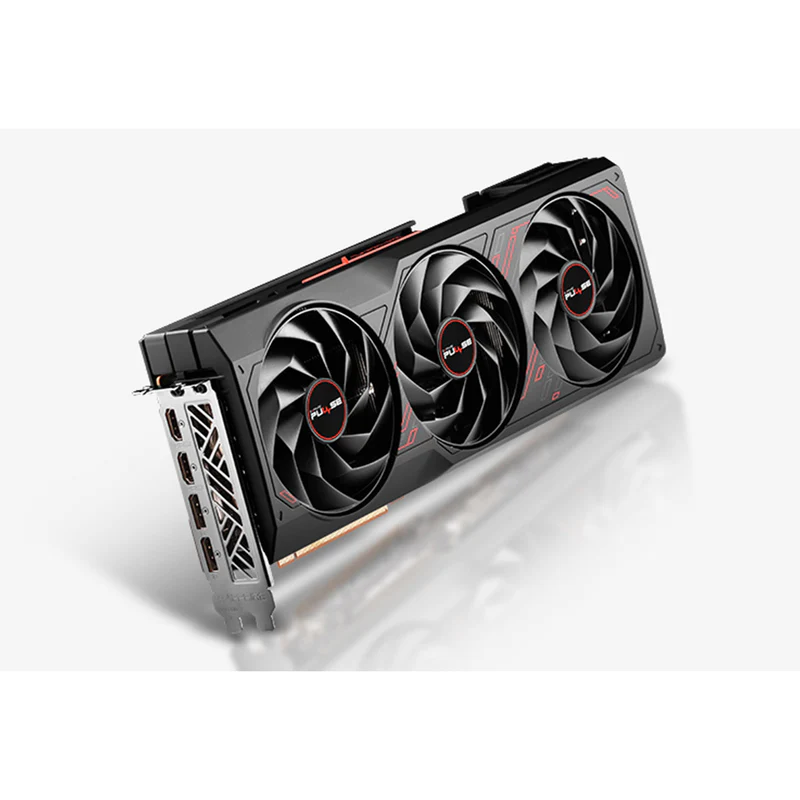

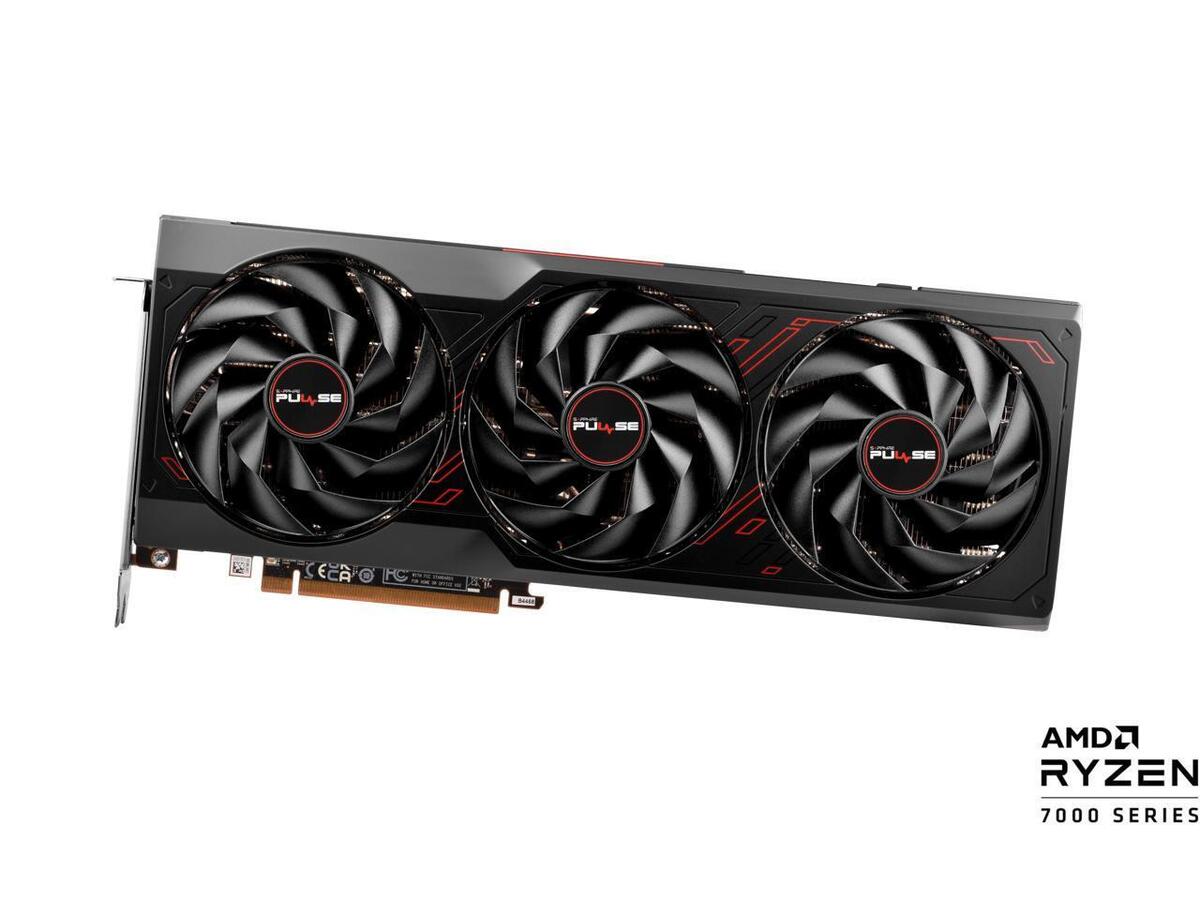

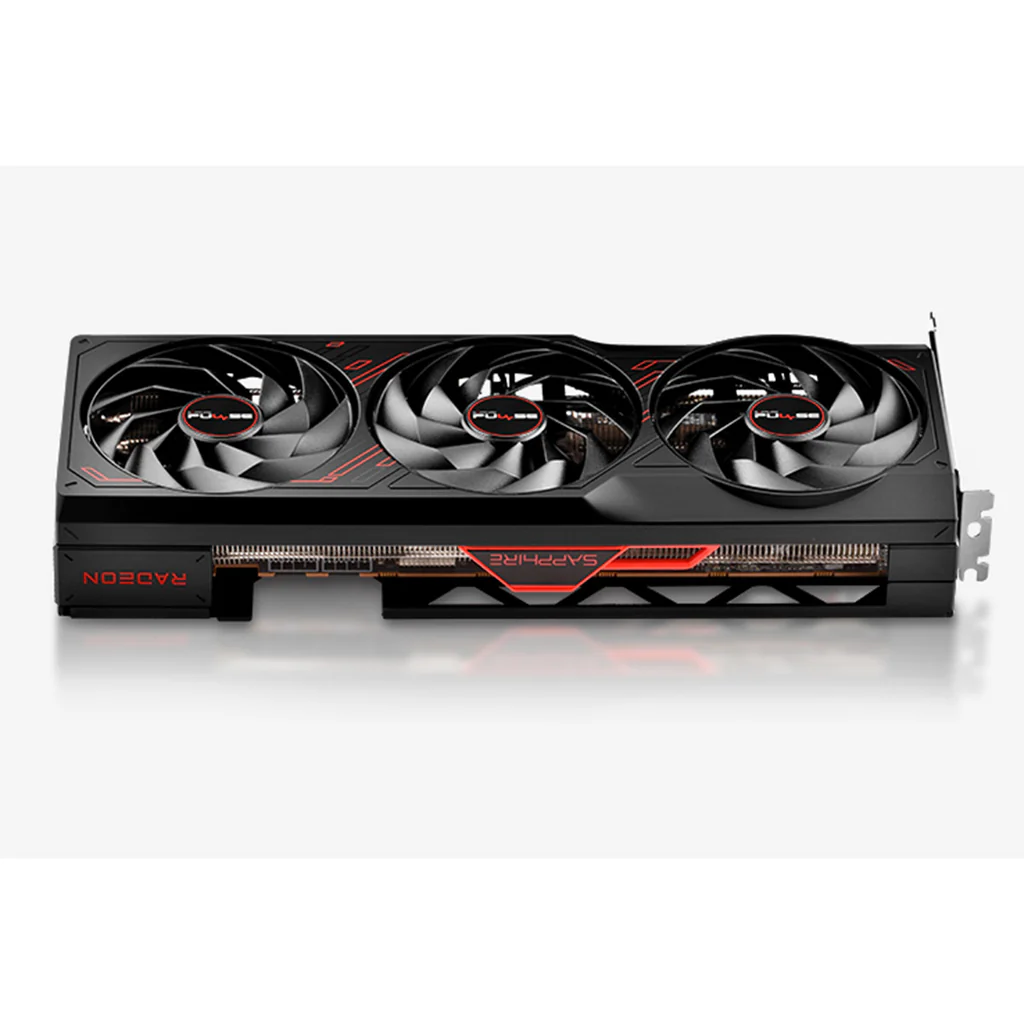

AMD Radeon™ RX 7900 GRE Graphics Card
5nm GPU
AMD RDNA™ 3 Architecture
5nm GPU
AMD RDNA™ 3 Architecture
Engine Clock
- Boost Clock: Up to 2290 MHz
- Game Clock: Up to 1925 MHz
Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
5120
Compute Units
80 CU (with RT+AI Accelerators)
Infinity Cache
64MB
Ray Accelerators
80
Memory Size/Bus
16GB/256 bit GDDR6
Memory Clock
18 Gbps Effective
Displays
Maximum 4 Displays
Resolution
- HDMI™: 7680×4320
- DisplayPort 2.1: 7680×4320
Interface
PCI-Express 4.0 x16
Output
- 2x HDMI
- 2x DisplayPort
BIOS Support
- UEFI
Game Index
4K
AMD Features
- AMD RDNA™ 3 Architecture
- 80 AMD RDNA™ 3 Compute Units
- 64MB AMD Infinity Cache™ Technology
- DirectX 12 Ultimate Support
- DisplayPort™ 2.1 with DSC
- AMD Radiance Display™ Engine
- 16GB GDDR6 on 256-Bit Memory Bus
- PCI® Express 4.0 ready
- AMD FidelityFX™ Super Resolution technology
- Microsoft® DirectX® 12 Ultimate Support
- Microsoft® DirectStorage Support
- Vulkan® Optimized
- AMD Smart Technologies
- AMD Software: Adrenalin Edition™
- AMD Noise Suppression
- AMD Privacy View
- AMD Radeon™ Super Resolution technology
- AMD FreeSync™ Technology
Cooler Type
3 Fans
Form Factor
2.5 slot, ATX
Dimension: 280(L)X 128.75(W)X 52.57 (H)mm
Dimension: 280(L)X 128.75(W)X 52.57 (H)mm
Power Consumption
268W Total Board Power
OS
Linux®, Windows® 10, and Windows 11. 64-bit operating system required
System Requirement
- Minimum 700 Watt Power Supply
- 2 x 8-pin Power Connector.
- PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
- Minimum 8GB of system memory. 16GB recommended.
