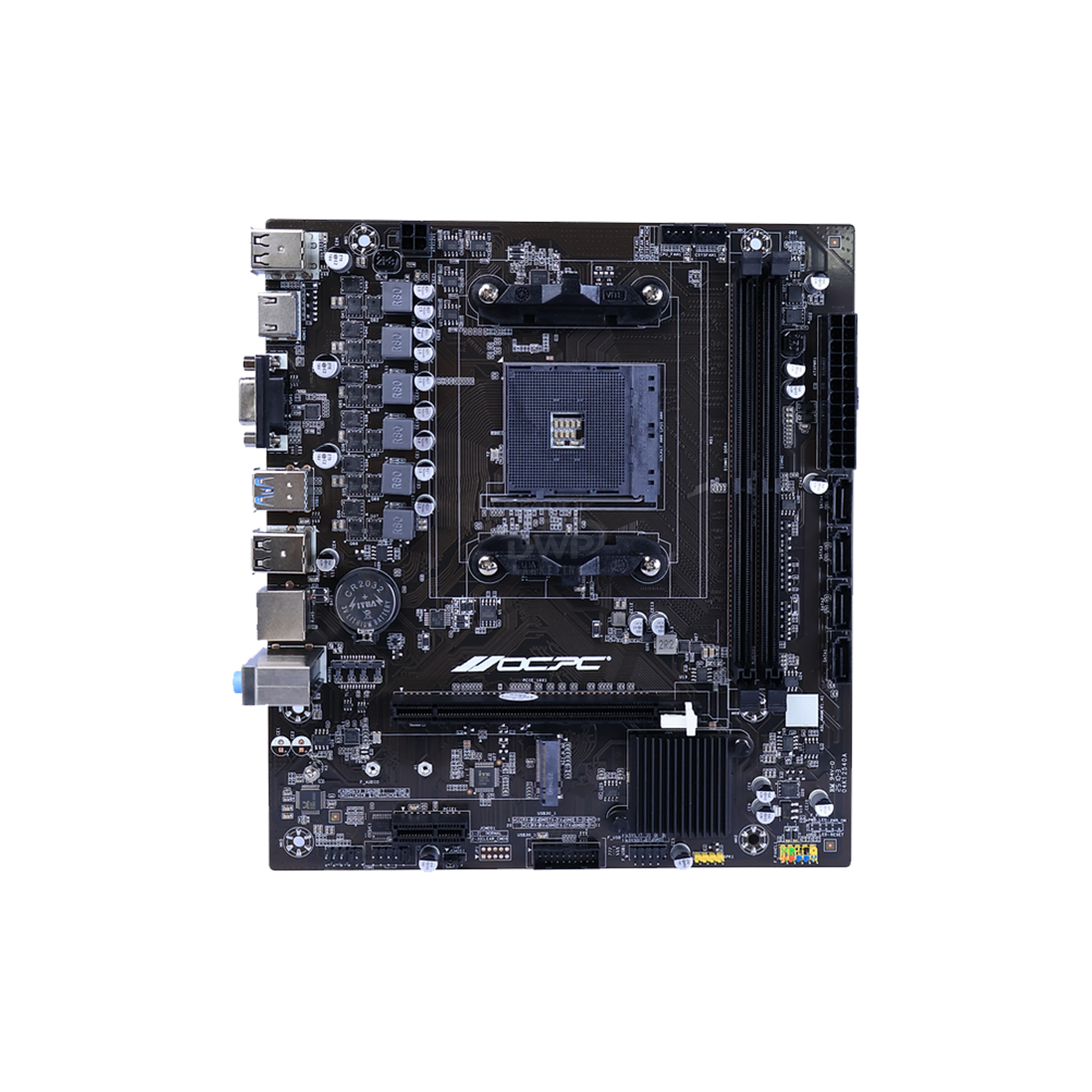

OCPC B450M M-ATX GAMING MOTHERBOARD

The OCPC OCMB-B450M motherboards are ready to support thwe latest AMD Ryzen™ 5000 Series Processors and are backwards compatible with AMD Ryzen™ 4000, 3000, 2000 and 1000 Series Processors.

OCPC motherboards are perfect for gamers/users looking to build the most cost effective with high performance AMD systems.

• Model

  OCMB-B450M

• Chipset

  AMD AM4, AMD 3rd/4th/5th generation compatible with AMD Ryzen™ 3000, 4000, 4000G, 5000, 5000G

• CPU Socket

  B450

• Memory Support

  Support 2* DDR4 Desktop Memory

• Dimm

  2x DDR4 Slots (Max. up to 64GB, 32GB/DIMM, 3200Mhz Frequency)

• GPU

  integrated

• I/O interface

  1*HDMI, 1*VGA

  2*USB 3.0 + 4*USB 2.0

  1*RJ45 100Mbps or 1000Mbps

  1* 3 in 1 Audio port (Line in/Line out/Mic in) Realtek HD Audio chipset

• Onboard interface

  4*SATA 3.0

  1*M.2

  1*PCIE 1x, 1*PCIE 16x

  1*F USB 2.0 pin, 1*USB 3.0 pin

  1*F Audio

• Power Connector

  1*24pin ATX PWR, 1*4pin 12V power connector

• Size

  Micro ATX 20*22cm

• B450M Bios (Firmware) Download

  B450M
