| Best Seller Ranking | #24 in AMD Motherboards |
|---|
| Brand | MSI |
|---|---|

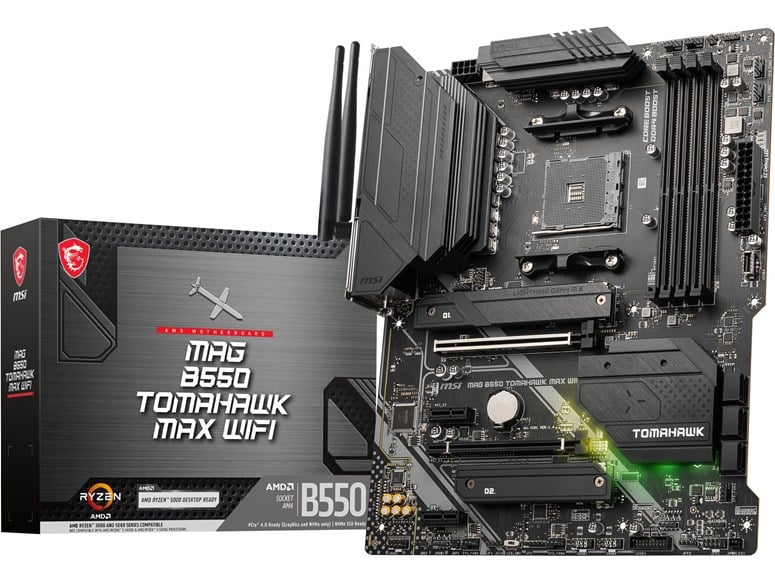

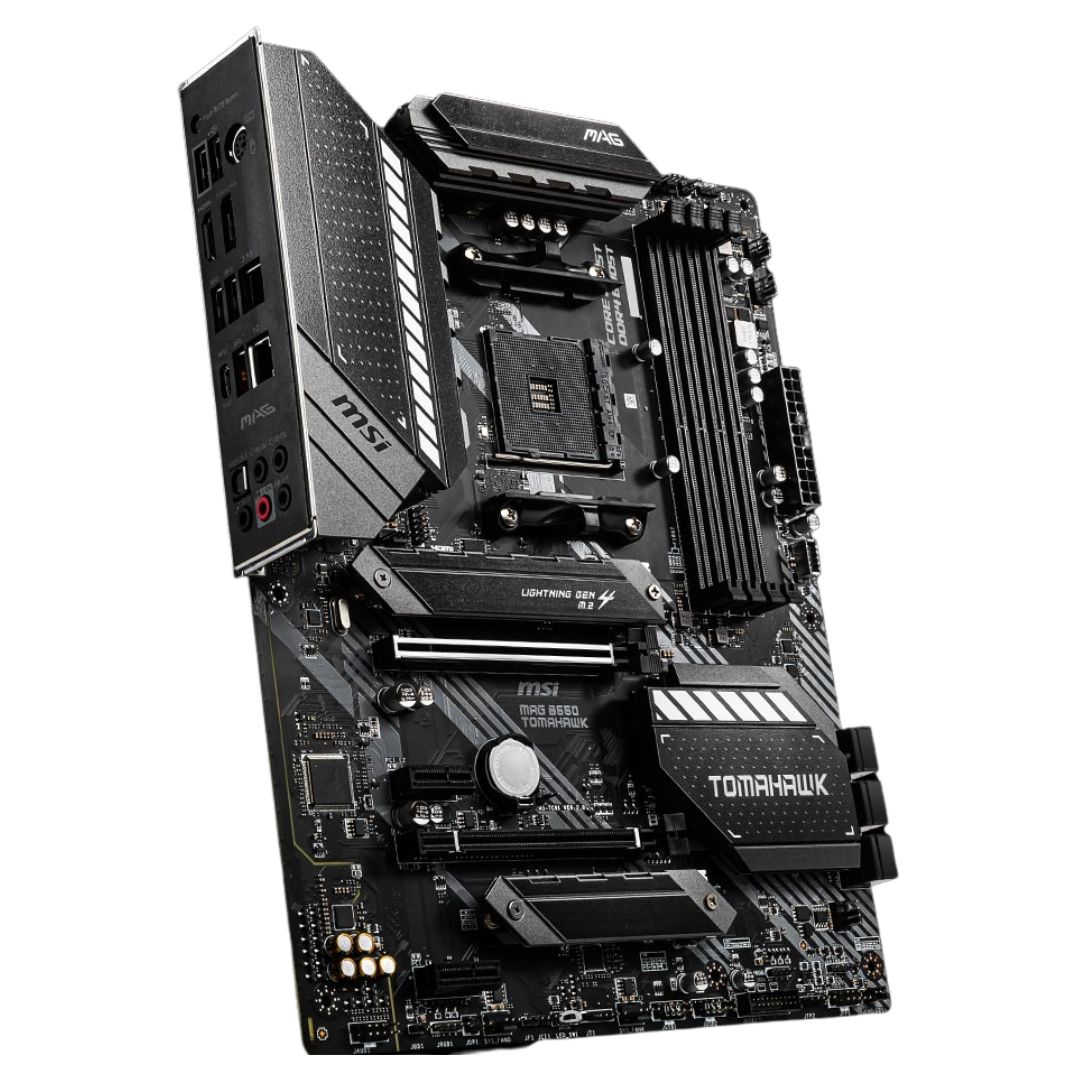

| Model | MAG B550 TOMAHAWK MAX WIFI |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | Supports AMD Ryzen 5000 / 5000 G / 4000 G / 3000 Series processors |
| Chipset | AMD B550 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 5100+ (OC) |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
|---|---|
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
| PCI Express x1 | 2 x PCI Express 3.0 x1 |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 Gen4 x4 64Gbps slot, 1 x M.2 Gen3 x4 32Gbps slot |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8125B |
|---|---|
| Max LAN Speed | 10/100/1000/2500Mbps |
| Wireless LAN | AMD Wi-Fi 6E module |
| Bluetooth | Bluetooth 5.2 |
| Back I/O Ports | 1 x Flash BIOS Button 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) 2 x Antenna Bracket 1 x Optical S/PDIF Out 5 x Audio Jacks 1 x PS/2 Keyboard/Mouse Combo 2 x USB 2.0/1.1 2 x USB 3.2 Gen 1 Type-A 1 x USB 3.2 Gen 2 Type-A 1 x USB 3.2 Gen 2 Type-C |
|---|
| Form Factor | ATX |
|---|
